LEAN. MEAN. CLEAN.

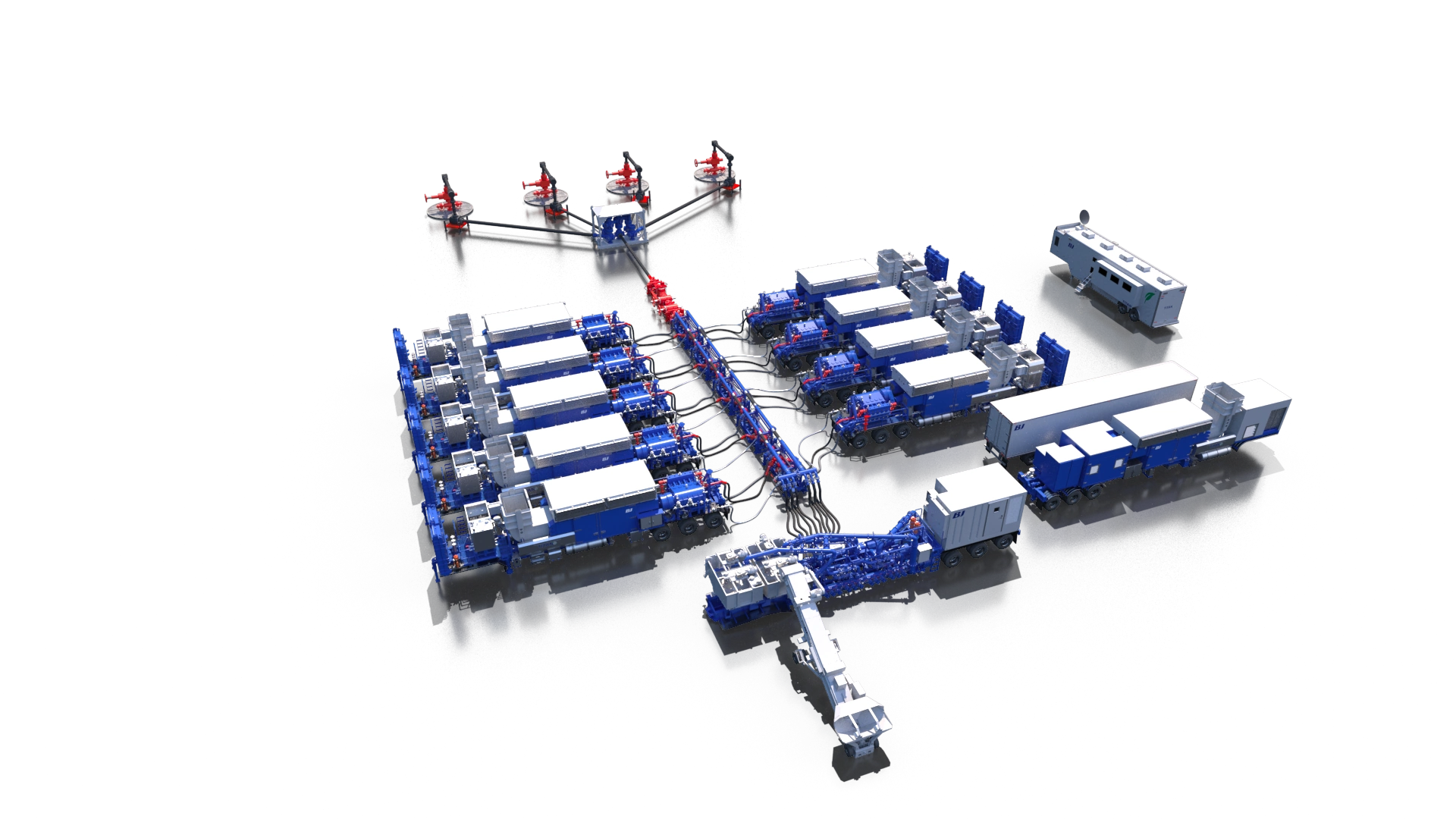

TITAN Next Generation Fracturing Fleet
A True Hybrid Solution
No Boundaries - A wholistic solution integrating Direct Drive Turbine horsepower with electric-powered support equipment
Enhanced safety and reliability
Fueled by Natural Gas
Replaces diesel fuel with clean burning natural gas
Delivers $10-20M annualized fuel savings as compared to diesel fleets (~400 hrs/month)
Best in Class Emissions Profile
25% lower CO2E as compared to Tier IV DGB powered frac fleets
Significant engine idle reduction, less than 2% idle time
Power Density
Less equipment, Less maintenance, Less downtime
Consistently achieving less than 36 hour pad moves
Smallest Footprint
Most efficient power to pump combination, reducing surface footprint up to 60%
Leading Simulfrac solution
Cutting edge automation and controls technology
BJ proprietary developed FACTS
TM
- Fleet Automation, Control, & Telemetry System

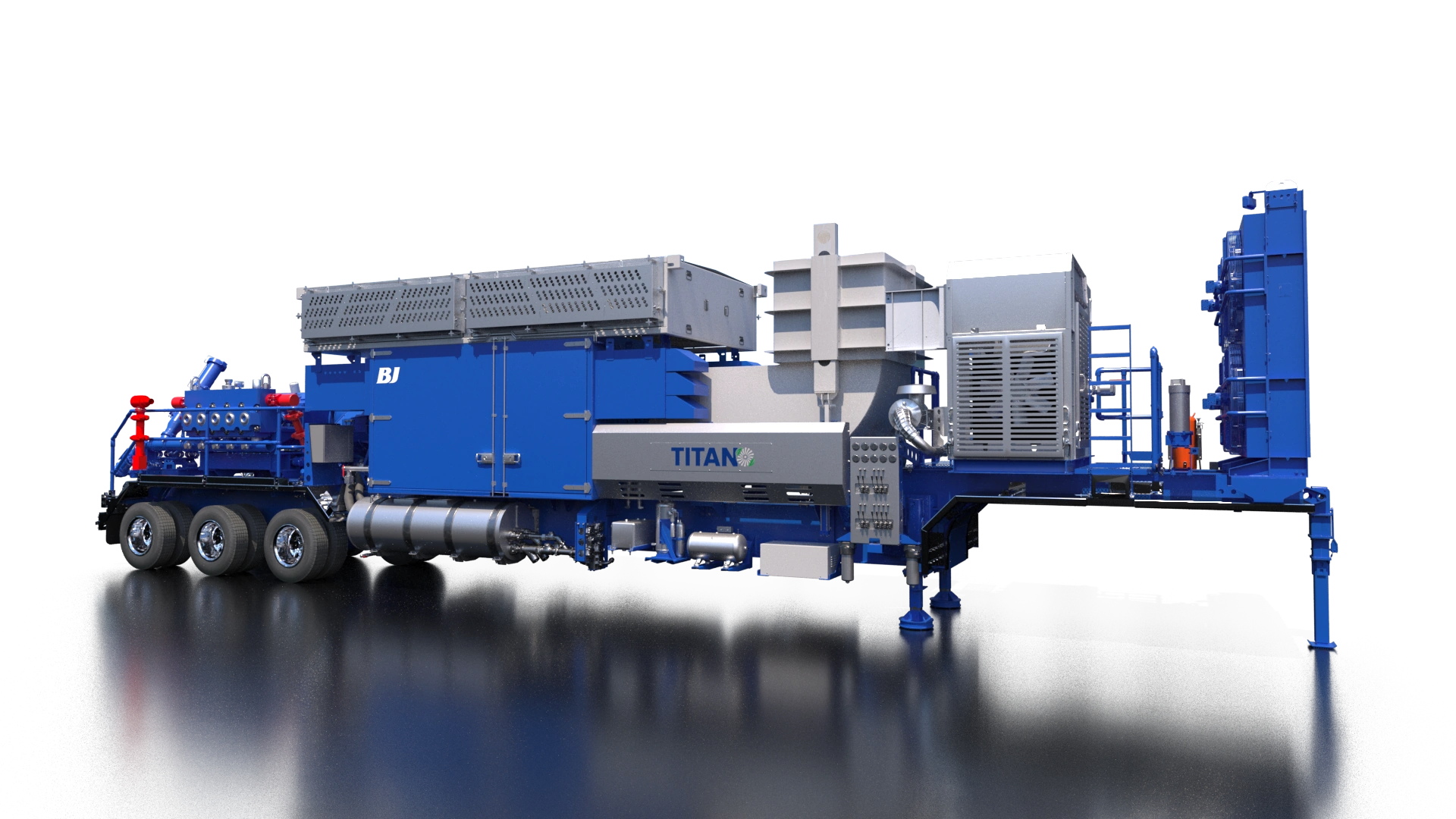

TITAN Pump
Highest Independent Power Density
Each TITAN Pump is a standalone 5,000 HHP unit with no external power required
Most efficient energy transfer path from engine to HHP via a direct drive turbine
Fueled by Natural Gas
Fueled 100% by natural gas (field gas, CNG, or LNG), switching to a liquid fuel in the event of a natural gas disruption
Engine accepts wide range of gas quality, superior to all other solutions
Rapid start / stop capability
Micro-turbine technology allows for quick start/stop cycles
Less than 2% idle time, optimizing emissions and fuel consumption
Componentized Design
Modular components designed to maximize asset utilization and reduce unit downtime
Quick swap components enable offline maintenance
Lowest Emissions Profile
Offsets an average of 25,000 tonnes per year of CO2 equivalent, compared to Tier IV DGB
Best in class Non-GHG Emission Profile (NOx, PM, CO)
Noise Reduction
Sound attenuated to generate less than 65 dBA at 300 ft
"Acceptable in my neighborhood" - designed to minimize noise pollution

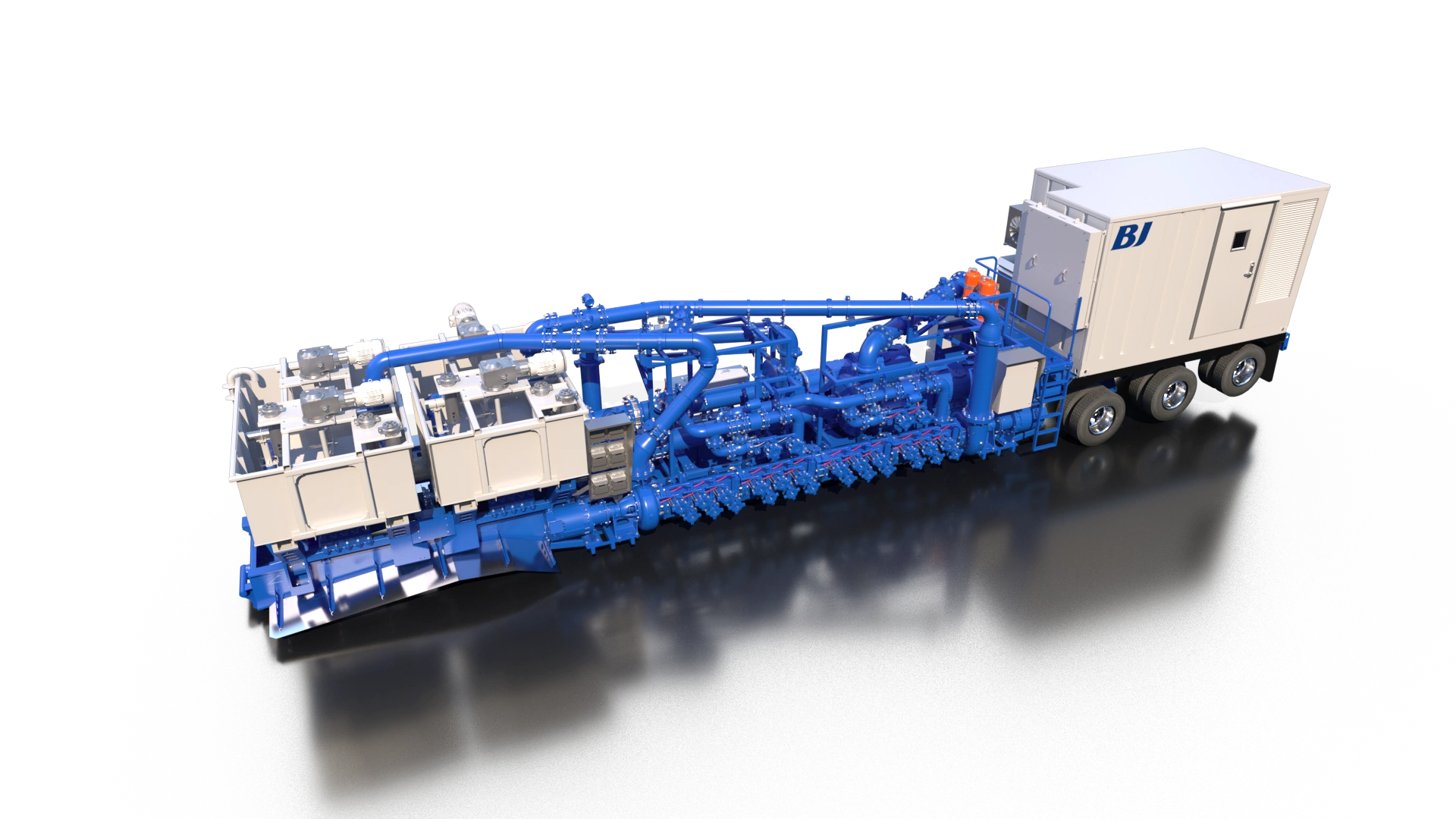

TruDuo Blender
Revolutionary & Innovative
100% Redundancy on a Single Unit - Two blenders, one chassis
Blender capable of self diagnostics and real-time performance evaluation
Fully Automated Manless Blender
Fleet level integration - blender to wellhead
Harnesses the future of ML and AI with automated equipment contingencies
Maximize Uptime
Designed to overcome the largest contributors of NPT
Plug n Play blender modules include sand, dry, and liquid adds
Reliability to meet today's most challenging completions
20,000 lbs/min per side, 40,000 combined
Dry and Wet Sand compatible
Simulfrac Ready
Simultanously treat 2 wells independently, up to 120 BPM per side, 240 BPM combined (rate)
Simulfrac Slip Stream Capability (IP) - Independent density per discharge side from a single unit
Zero emissions
Fully Electric
Noise reduction - low acoustic emissions

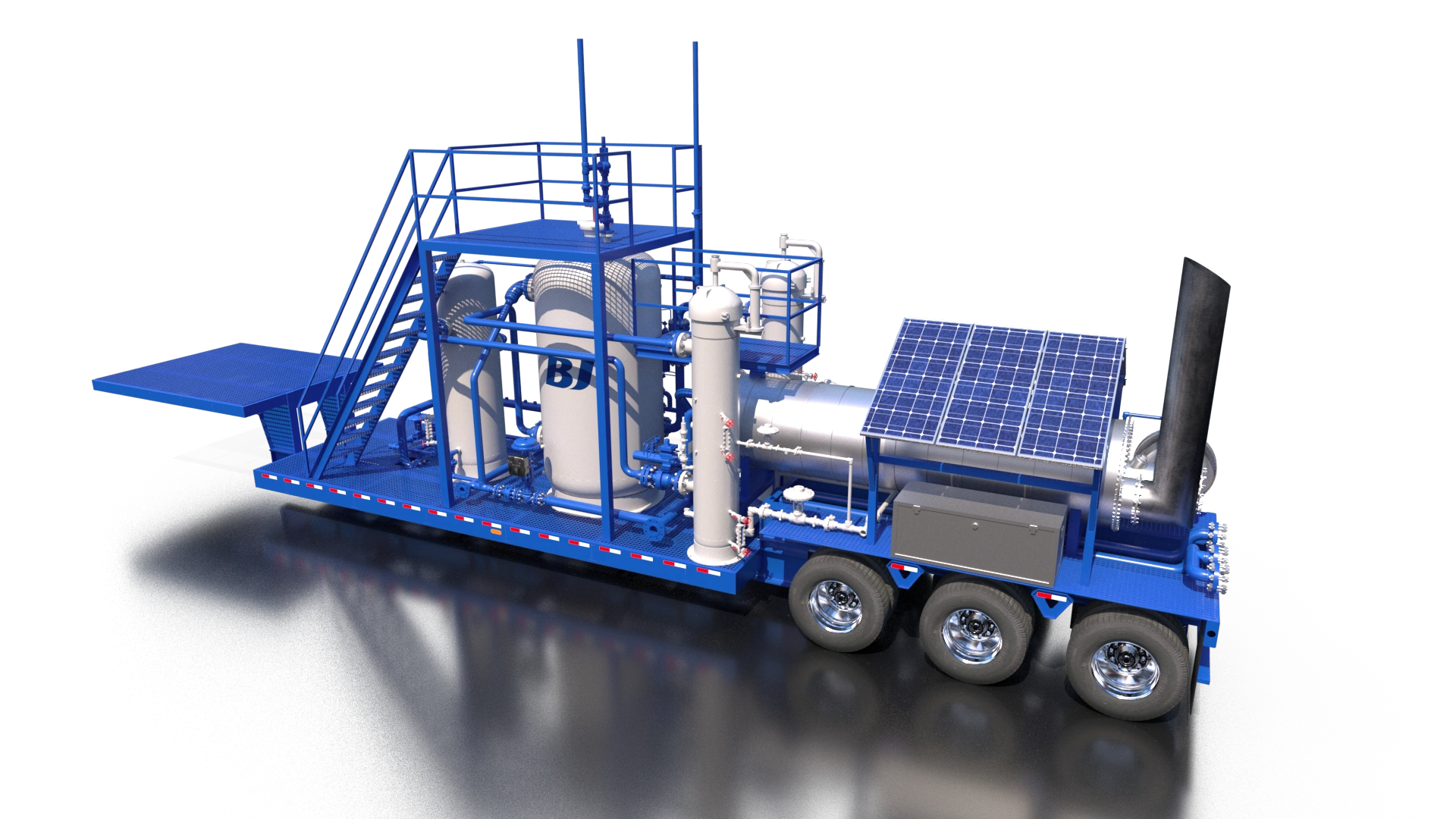

Gas Conditioning Unit
Efficient and Compact Gas Conditioning Trailer
Single Trailer Load (vs traditional 5 skid system), reduces rig in / rig out time by ~ 12 hours
Automated contingencies to eliminate the potential for water entering the turbine fuel system
Gas Conditioning Capability
Designed capacity of 10.8 MMSCF per day
2 dual-chamber inlet filter vessels in series with 6 liquid level dump valves, reverse flow filters, and automatic shut off valves to safeguard equipment

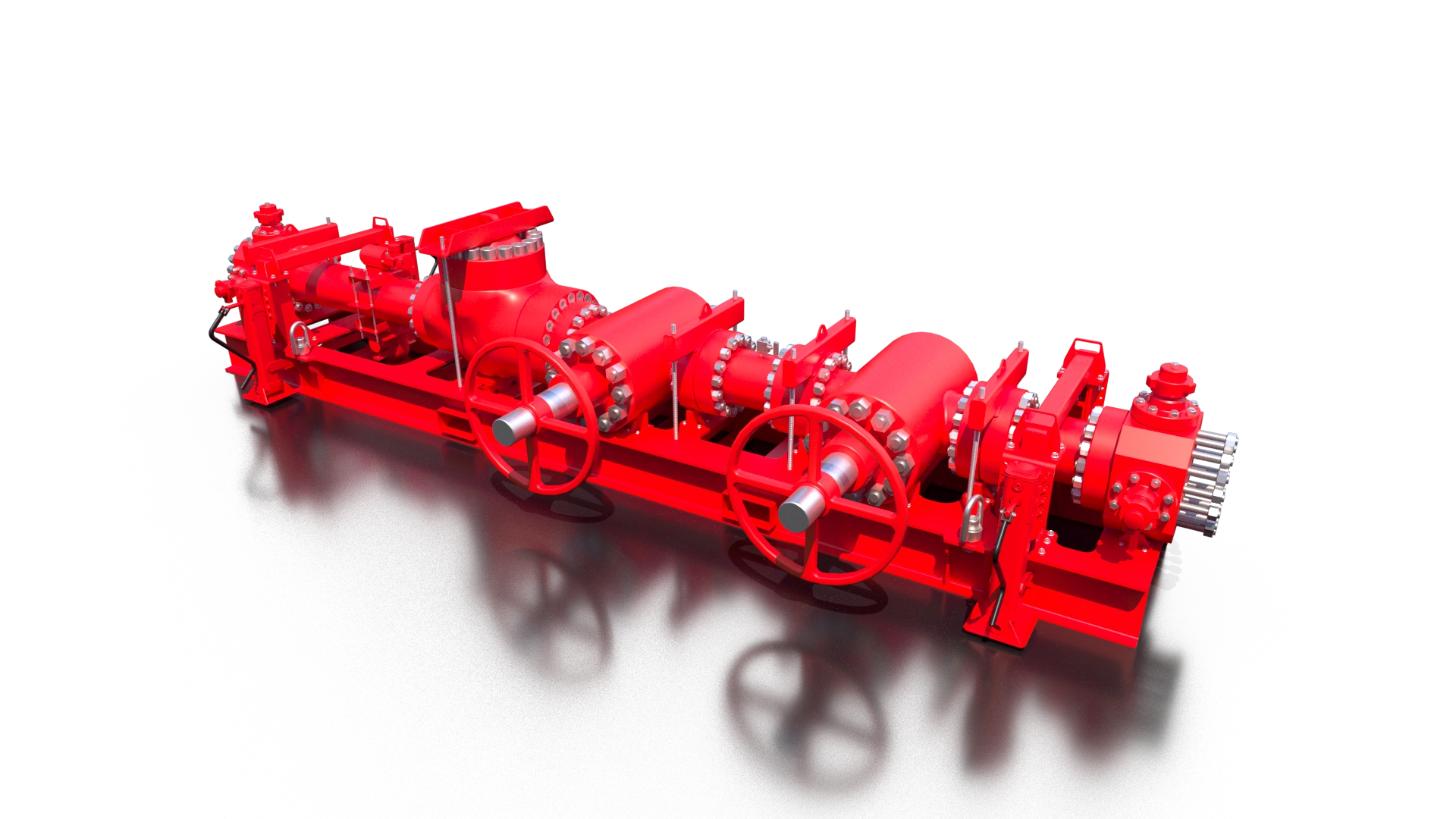

Integrated Manifold System
Instrumentation Skid
Incorporates all required operational valves to one skid
7 inch fullbore
Integrated fuel manifold
Integrates high pressure discharge, suction, and fuel supply lines.
Utilizes safe and efficient quick connect technologies.
Multiple Pump Configurations
Manifold can be configured to meet any job, no matter the size
Ensures spacing standardization for every rig up

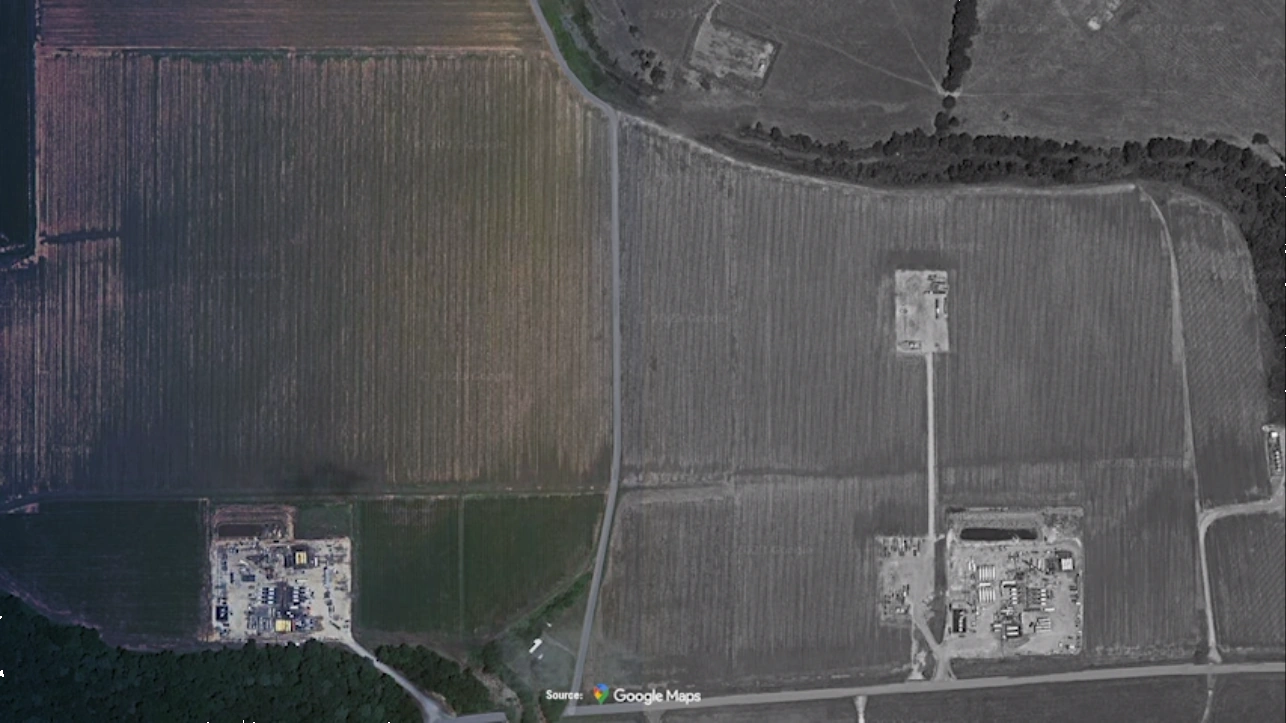

TITAN Footprint
40K HP TITAN Fleet vs 40K HP E-Fleet
40K HP E-Fleet and Natural Gas Recip Generators
TITAN 40K HP Natural Gas Direct Drive Turbine Frac Fleet
40K HP E-Fleet and Natural Gas Recip Generators
8 Electric 5,000 HP Pump Trailers
10 Natural Gas Recip Generator Units
TITAN 40K HP Natural Gas Direct Drive Turbine Frac Fleet
8 Natural Gas 5,000 HP Direct Drive Turbine Pumps
